BASKET SUPPORTS
Our Basket Supports range includes cantilever arms, support shelf hangers and structural support components designed to securely suspend and support wire mesh basket tray systems. Manufactured for strength and durability, the range provides reliable support solutions for commercial and industrial electrical containment installations.
Reference

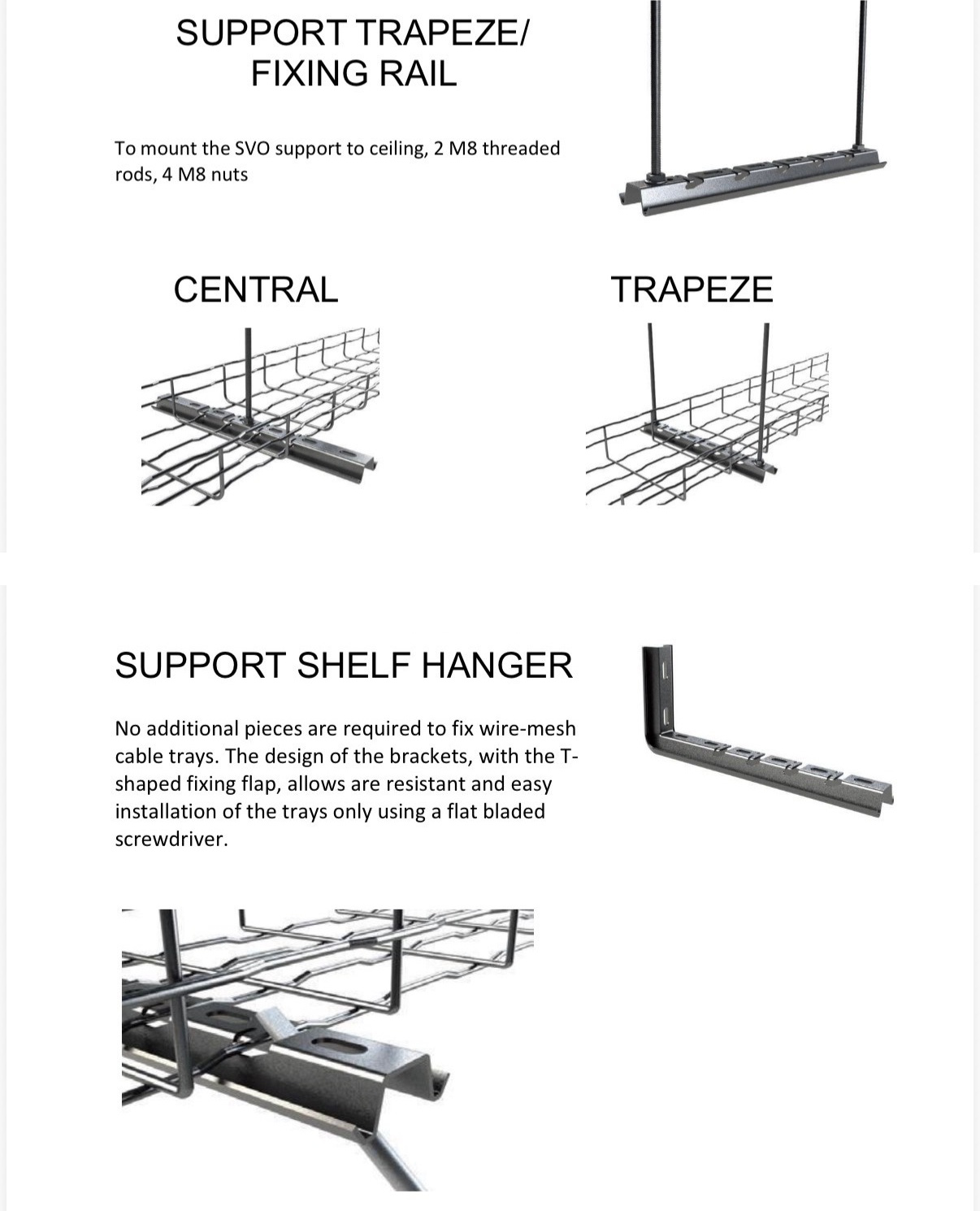

Technical Product Drawings
The drawings below provide a visual overview of the available product range. Scroll down to view the full product codes table, or select “View Full Size” for a detailed view of every dimension and specification.
Product Codes
Support Trapeze / Fixing Rail — Central & Trapeze (CCSVO)
Support Bracket
100mm
Support Bracket
150mm
Support Bracket
200mm
Support Bracket
300mm
Support Bracket
400mm
Support Bracket
500mm
Support Shelf Hanger — SCR Shot Support Bracket (CCSHOT)
SCR Shot Support Bracket
50mm
SCR Shot Support Bracket
100mm
SCR Shot Support Bracket
150mm
SCR Shot Support Bracket
200mm
SCR Shot Support Bracket
300mm
| Product | Size / Option | Product Code |
|---|---|---|
| Support Trapeze / Fixing Rail — Central & Trapeze (CCSVO) | ||
| Support Bracket | 100mm | |
| Support Bracket | 150mm | |
| Support Bracket | 200mm | |
| Support Bracket | 300mm | |
| Support Bracket | 400mm | |
| Support Bracket | 500mm | |
| Support Shelf Hanger — SCR Shot Support Bracket (CCSHOT) | ||
| SCR Shot Support Bracket | 50mm | |
| SCR Shot Support Bracket | 100mm | |
| SCR Shot Support Bracket | 150mm | |
| SCR Shot Support Bracket | 200mm | |
| SCR Shot Support Bracket | 300mm | |
Enquire — Basket Supports
Need cantilever arms or shelf hangers for your install?
Quote the support codes and lengths from the table above — we'll confirm load ratings, finishes and project quantities from the Cumbernauld depot.
