Brackets & Fixings
Full range of channel brackets, plates, right-angle fittings, base plates, beam clamps and gusset brackets.
View RangeMetalwork & Containment / Fixings & Accessories
FIXINGS & ACCESSORIES
Our Fixings & Accessories range includes channel nuts, fasteners, washers, anchors, rod connectors and installation hardware designed for steel channel, basket tray and cable tray systems. Manufactured for secure and reliable containment installations, the range provides the essential fixing components required across commercial and industrial electrical projects.
Reference

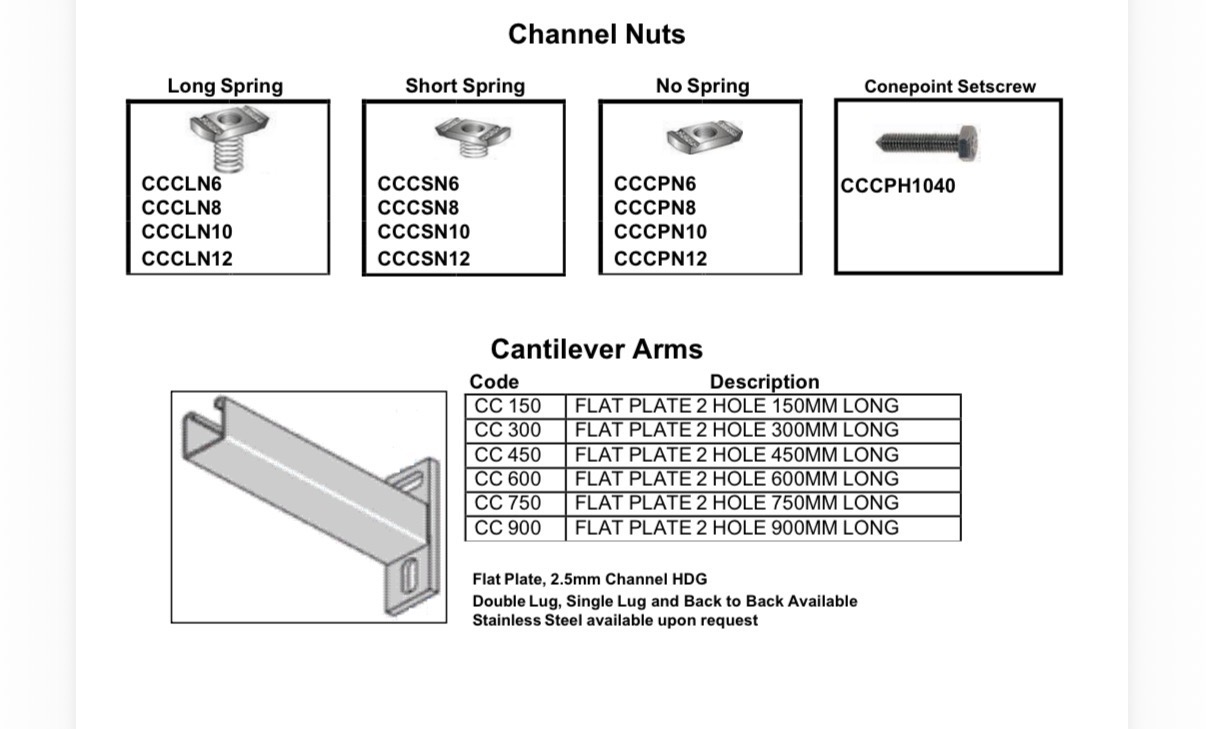

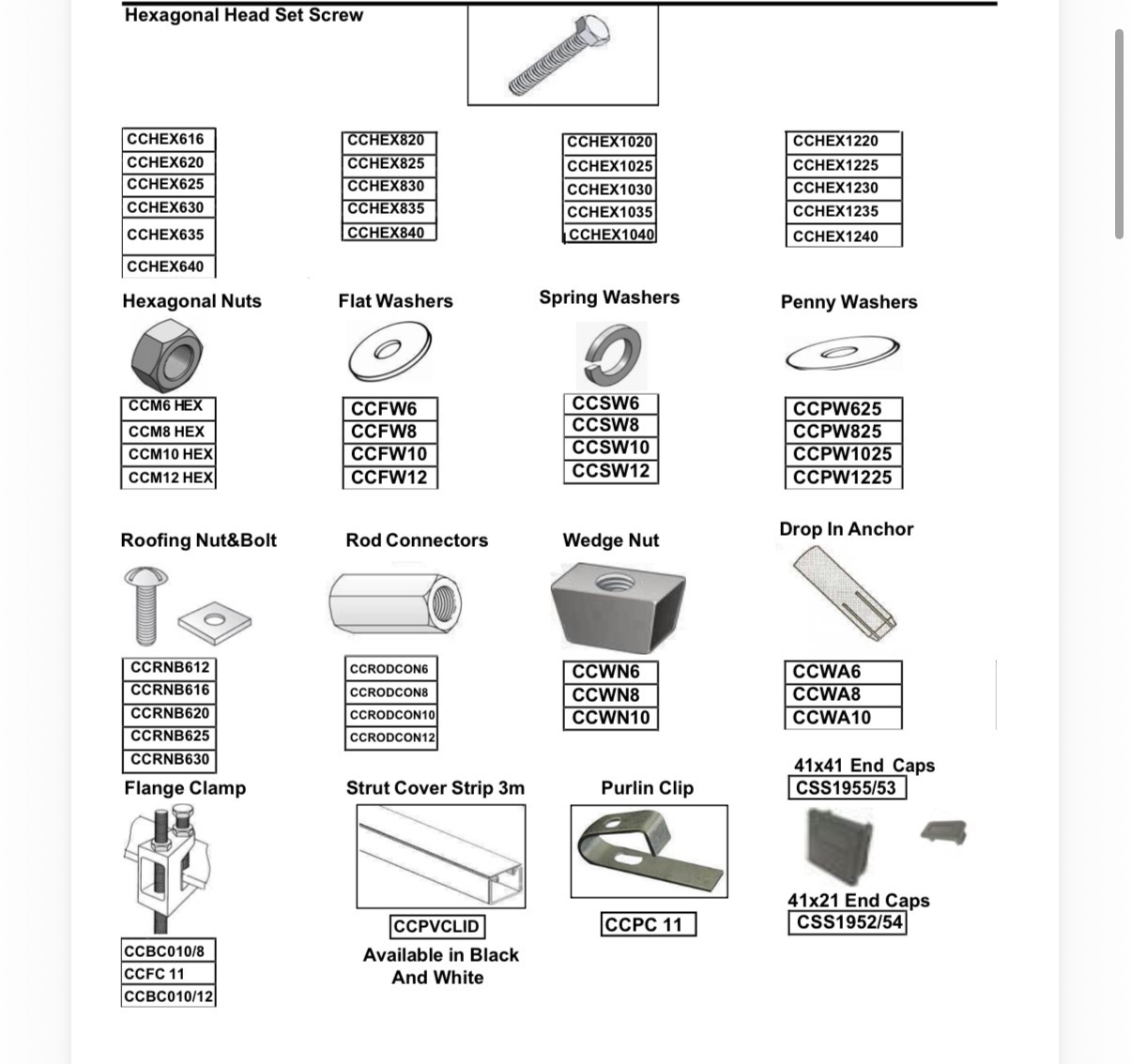

Technical Product Drawings
The drawings below provide a visual overview of the available product range. Scroll down to view the full product codes table, or select “View Full Size” for a detailed view of every dimension and specification.
All dimensions are in millimetres (mm).
Product Codes
Channel Nuts
Long Spring Channel Nuts
M6, M8, M10, M12
Short Spring Channel Nuts
M6, M8, M10, M12
No Spring Channel Nuts
M6, M8, M10, M12
Conepoint Setscrew
M10 × 40
Fasteners & Washers
Hexagonal Head Set Screw
M6–M12
Hexagonal Nuts
M6, M8, M10, M12
Flat Washers
M6, M8, M10, M12
Spring Washers
M6, M8, M10, M12
Penny Washers
M6–M12
Roofing Nut & Bolt
Multiple Sizes
Anchors & Connectors
Rod Connectors
M6, M8, M10, M12
Wedge Nuts
M6, M8, M10
Drop In Anchors
M6, M8, M10
Flange Clamps
Multiple Sizes
Accessories
Strut Cover Strip
Black / White 3m
Purlin Clip
Standard
41×41 End Cap
Standard
41×21 End Cap
Standard
Cantilever Arms
Cantilever Arm — Flat Plate 2 Hole
150mm Long
Cantilever Arm — Flat Plate 2 Hole
300mm Long
Cantilever Arm — Flat Plate 2 Hole
450mm Long
Cantilever Arm — Flat Plate 2 Hole
600mm Long
Cantilever Arm — Flat Plate 2 Hole
750mm Long
Cantilever Arm — Flat Plate 2 Hole
900mm Long
| Product | Size / Option | Product Code |
|---|---|---|
| Channel Nuts | ||
| Long Spring Channel Nuts | M6, M8, M10, M12 | |
| Short Spring Channel Nuts | M6, M8, M10, M12 | |
| No Spring Channel Nuts | M6, M8, M10, M12 | |
| Conepoint Setscrew | M10 × 40 | |
| Fasteners & Washers | ||
| Hexagonal Head Set Screw | M6–M12 | |
| Hexagonal Nuts | M6, M8, M10, M12 | |
| Flat Washers | M6, M8, M10, M12 | |
| Spring Washers | M6, M8, M10, M12 | |
| Penny Washers | M6–M12 | |
| Roofing Nut & Bolt | Multiple Sizes | |
| Anchors & Connectors | ||
| Rod Connectors | M6, M8, M10, M12 | |
| Wedge Nuts | M6, M8, M10 | |
| Drop In Anchors | M6, M8, M10 | |
| Flange Clamps | Multiple Sizes | |
| Accessories | ||
| Strut Cover Strip | Black / White 3m | |
| Purlin Clip | Standard | |
| 41×41 End Cap | Standard | |
| 41×21 End Cap | Standard | |
| Cantilever Arms | ||
| Cantilever Arm — Flat Plate 2 Hole | 150mm Long | |
| Cantilever Arm — Flat Plate 2 Hole | 300mm Long | |
| Cantilever Arm — Flat Plate 2 Hole | 450mm Long | |
| Cantilever Arm — Flat Plate 2 Hole | 600mm Long | |
| Cantilever Arm — Flat Plate 2 Hole | 750mm Long | |
| Cantilever Arm — Flat Plate 2 Hole | 900mm Long | |
Enquire — Fixings & Accessories
Need channel nuts, anchors or fasteners in bulk?
Quote the channel nut, fastener or anchor codes from the table above — we'll confirm thread sizes, finishes and box quantities from the Cumbernauld depot.
