STEEL CHANNEL & STRUT
Our Steel Channel & Strut range includes pre-galvanised slotted, plain and back-to-back channel systems designed for electrical containment, mechanical support and suspended installations. Available in multiple profiles, gauges and lengths, the range provides a robust support solution for commercial and industrial applications.
Reference

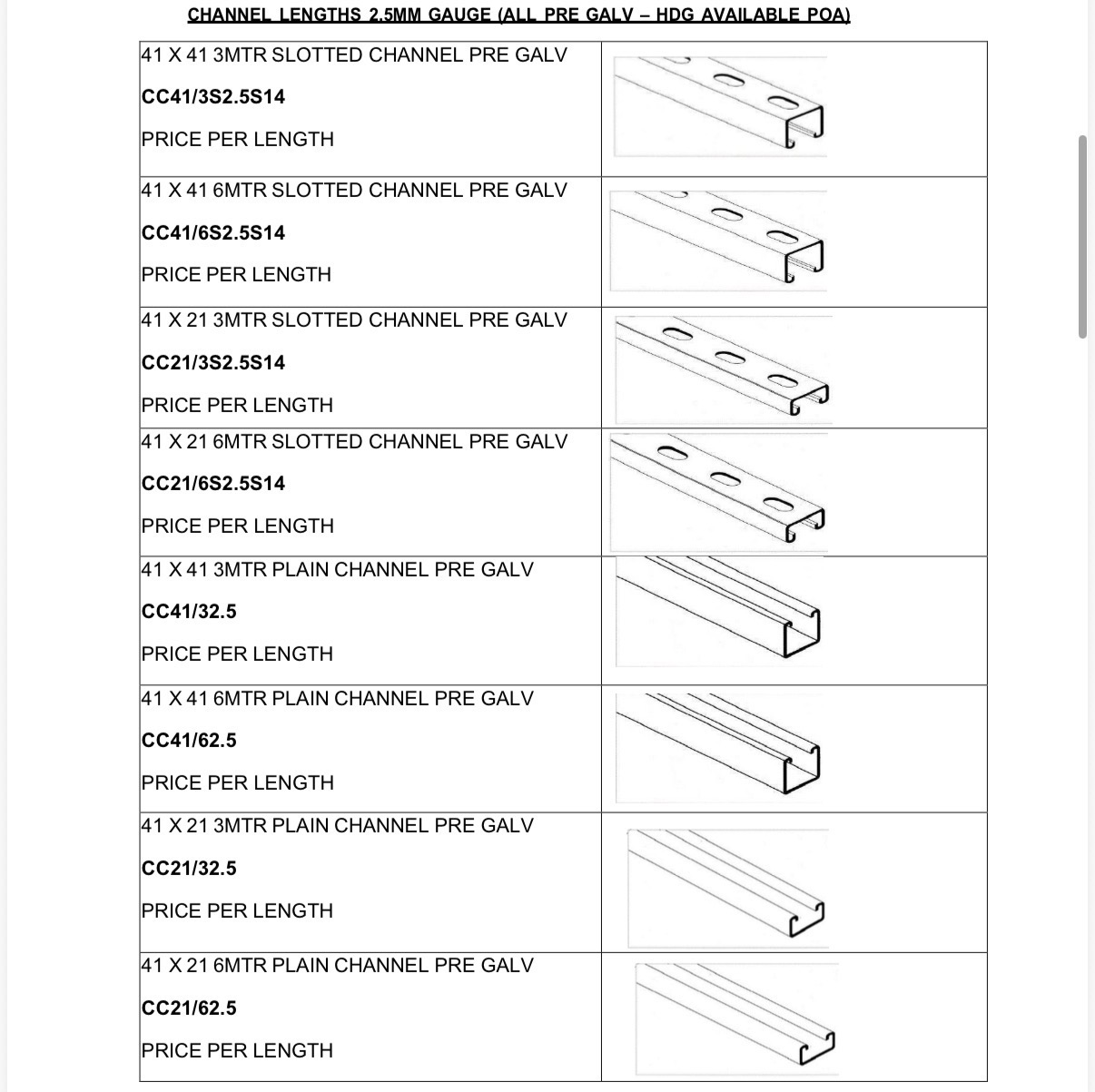

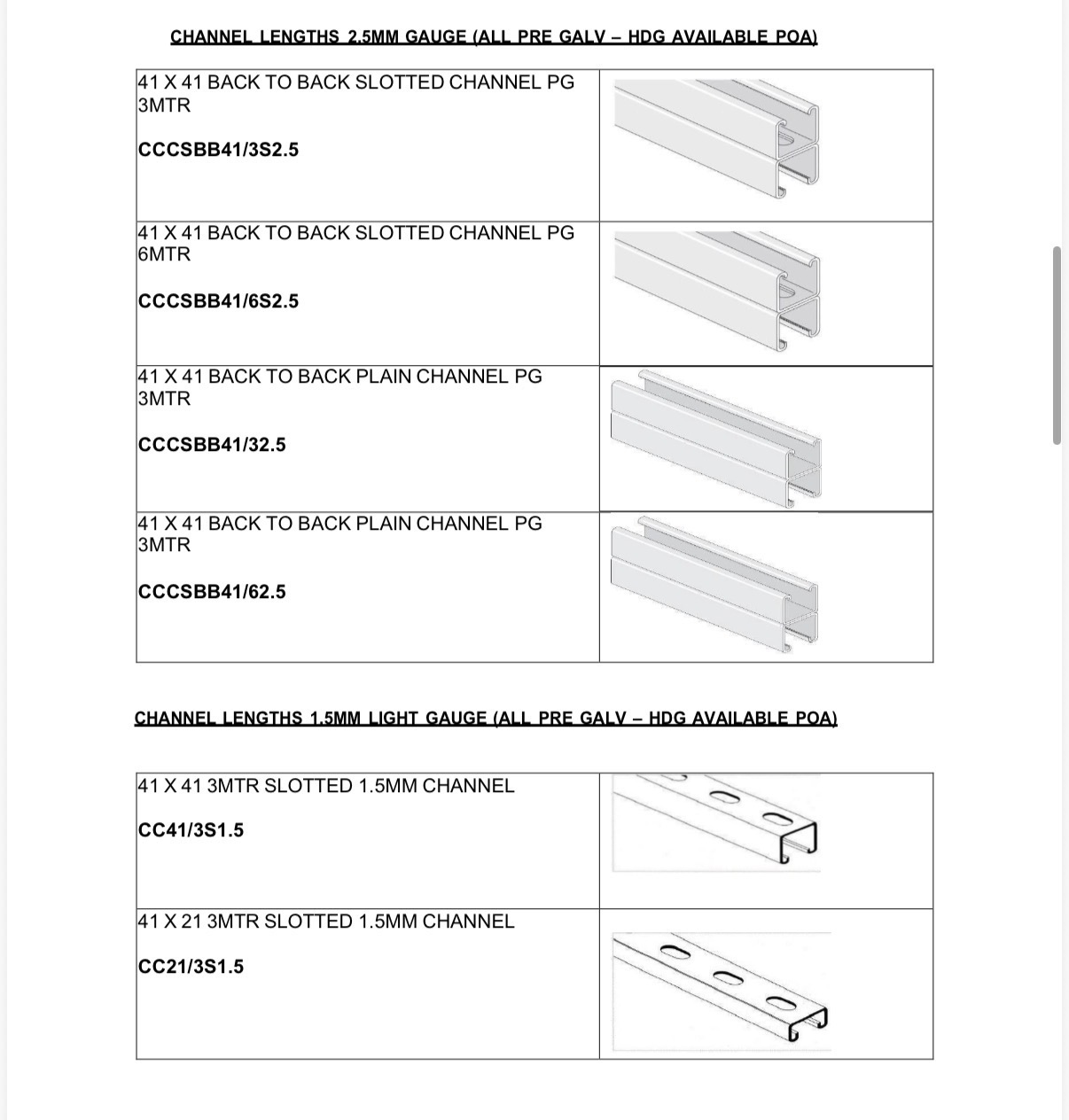

Technical Product Drawings
The drawings below provide a visual overview of the available product range. Scroll down to view the full product codes table, or select “View Full Size” for a detailed view of every dimension and specification.
All dimensions are in millimetres (mm). HDG finish available — POA.
Product Codes
Slotted Channel — 2.5mm Gauge (Pre-Galv, HDG available POA)
41 × 41 Slotted Channel Pre-Galv
3mtr
41 × 41 Slotted Channel Pre-Galv
6mtr
41 × 21 Slotted Channel Pre-Galv
3mtr
41 × 21 Slotted Channel Pre-Galv
6mtr
Plain Channel — 2.5mm Gauge (Pre-Galv, HDG available POA)
41 × 41 Plain Channel Pre-Galv
3mtr
41 × 41 Plain Channel Pre-Galv
6mtr
41 × 21 Plain Channel Pre-Galv
3mtr
41 × 21 Plain Channel Pre-Galv
6mtr
Back-to-Back Channel — 2.5mm Gauge (Pre-Galv, HDG available POA)
41 × 41 Back-to-Back Slotted Channel PG
3mtr
41 × 41 Back-to-Back Slotted Channel PG
6mtr
41 × 41 Back-to-Back Plain Channel PG
3mtr
41 × 41 Back-to-Back Plain Channel PG
6mtr
Light Gauge Channel — 1.5mm (Pre-Galv, HDG available POA)
41 × 41 Slotted 1.5mm Channel
3mtr
41 × 21 Slotted 1.5mm Channel
3mtr
| Product | Size / Option | Product Code |
|---|---|---|
| Slotted Channel — 2.5mm Gauge (Pre-Galv, HDG available POA) | ||
| 41 × 41 Slotted Channel Pre-Galv | 3mtr | |
| 41 × 41 Slotted Channel Pre-Galv | 6mtr | |
| 41 × 21 Slotted Channel Pre-Galv | 3mtr | |
| 41 × 21 Slotted Channel Pre-Galv | 6mtr | |
| Plain Channel — 2.5mm Gauge (Pre-Galv, HDG available POA) | ||
| 41 × 41 Plain Channel Pre-Galv | 3mtr | |
| 41 × 41 Plain Channel Pre-Galv | 6mtr | |
| 41 × 21 Plain Channel Pre-Galv | 3mtr | |
| 41 × 21 Plain Channel Pre-Galv | 6mtr | |
| Back-to-Back Channel — 2.5mm Gauge (Pre-Galv, HDG available POA) | ||
| 41 × 41 Back-to-Back Slotted Channel PG | 3mtr | |
| 41 × 41 Back-to-Back Slotted Channel PG | 6mtr | |
| 41 × 41 Back-to-Back Plain Channel PG | 3mtr | |
| 41 × 41 Back-to-Back Plain Channel PG | 6mtr | |
| Light Gauge Channel — 1.5mm (Pre-Galv, HDG available POA) | ||
| 41 × 41 Slotted 1.5mm Channel | 3mtr | |
| 41 × 21 Slotted 1.5mm Channel | 3mtr | |
Enquire — Steel Channel & Strut
Need pricing or stock on slotted strut and channel?
Quote the channel codes and gauges from the table above — we'll confirm lengths, finishes and project quantities from the Cumbernauld depot.
