Metalwork & Containment / Brackets & Fixings

BRACKETS & FIXINGS

Comprehensive range of steel channel brackets, support fittings, base plates, beam clamps and couplers for electrical containment systems. Supplied in multiple sizes and configurations to suit standard channel installations.

Reference

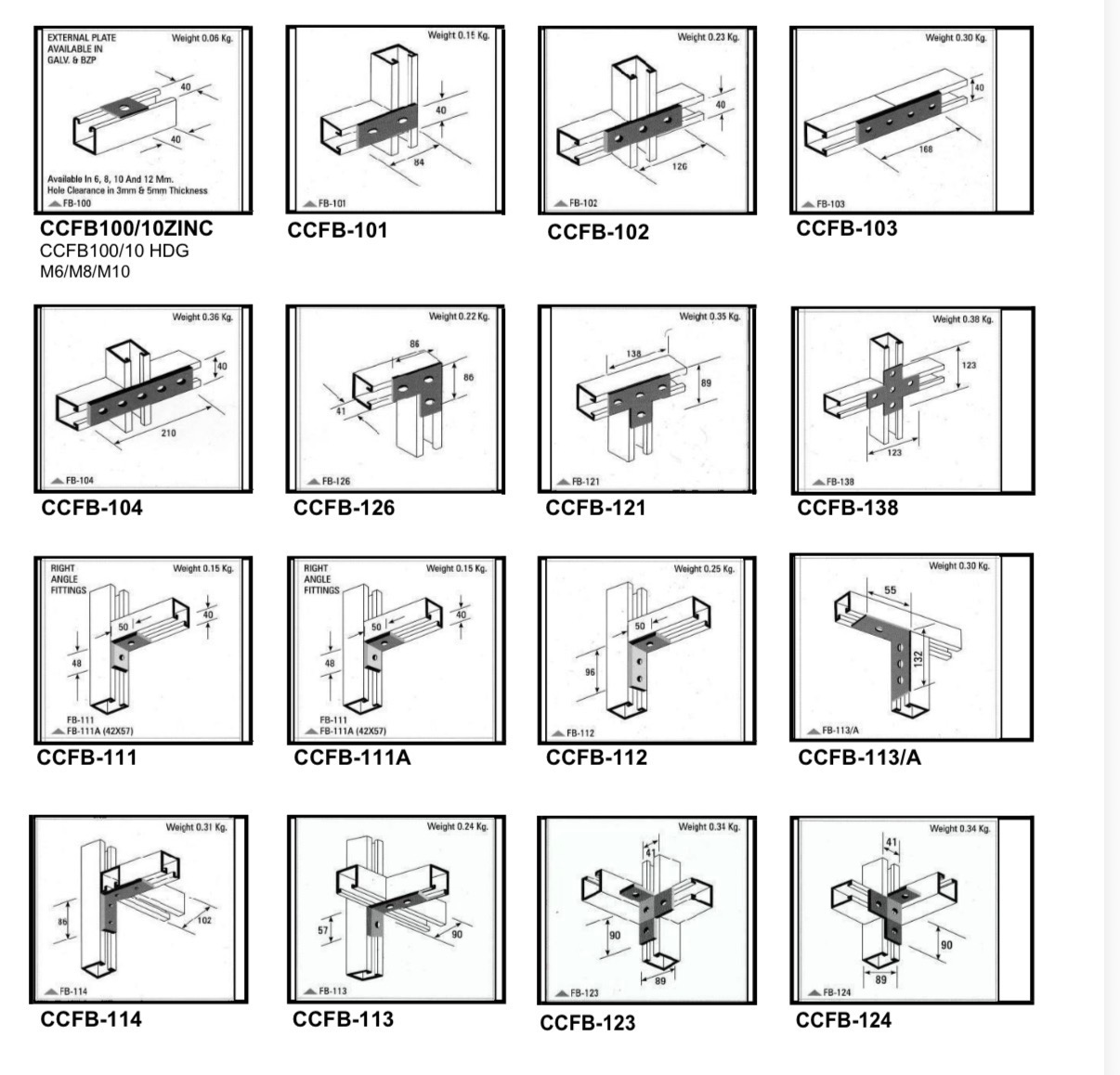

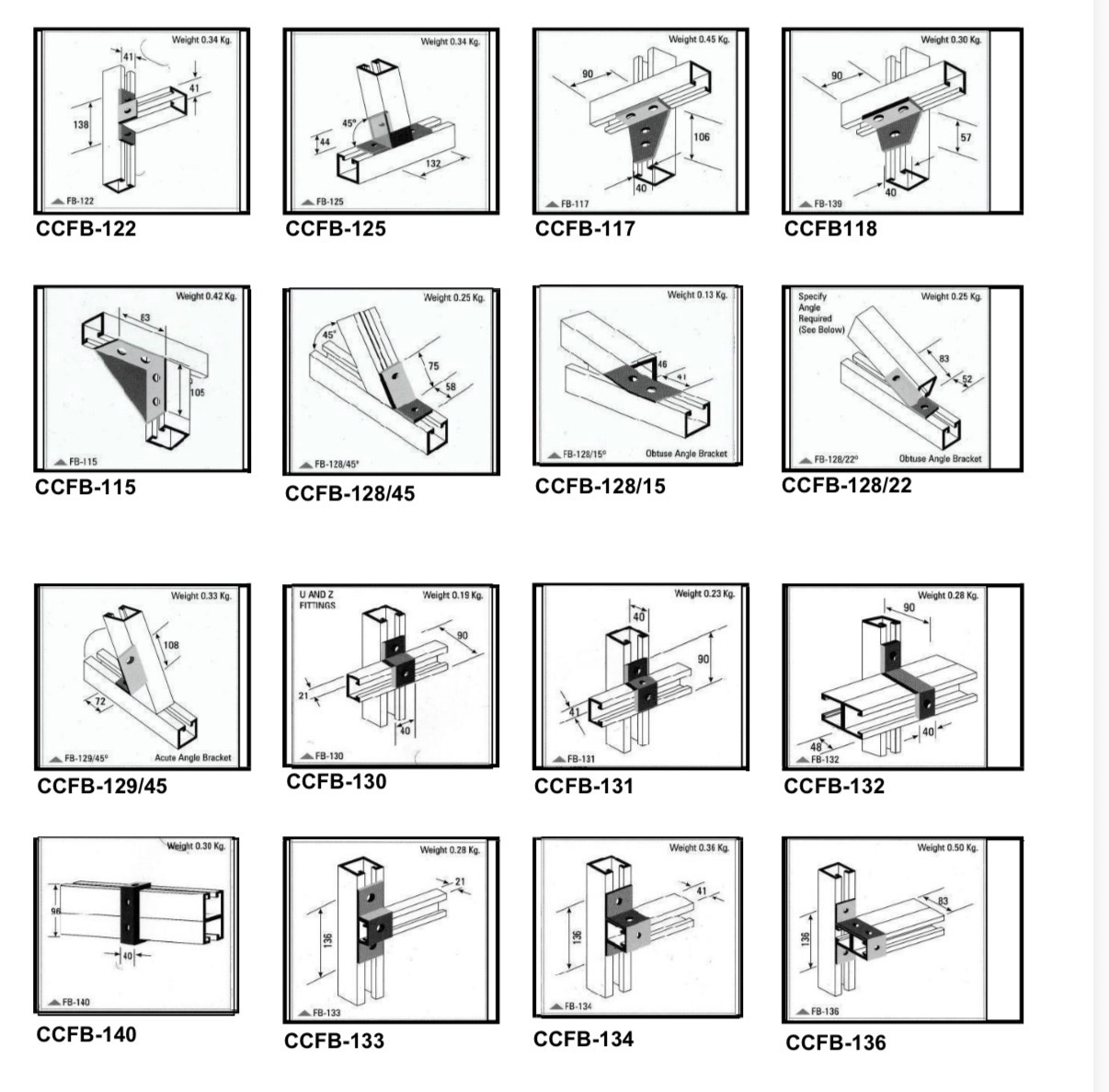

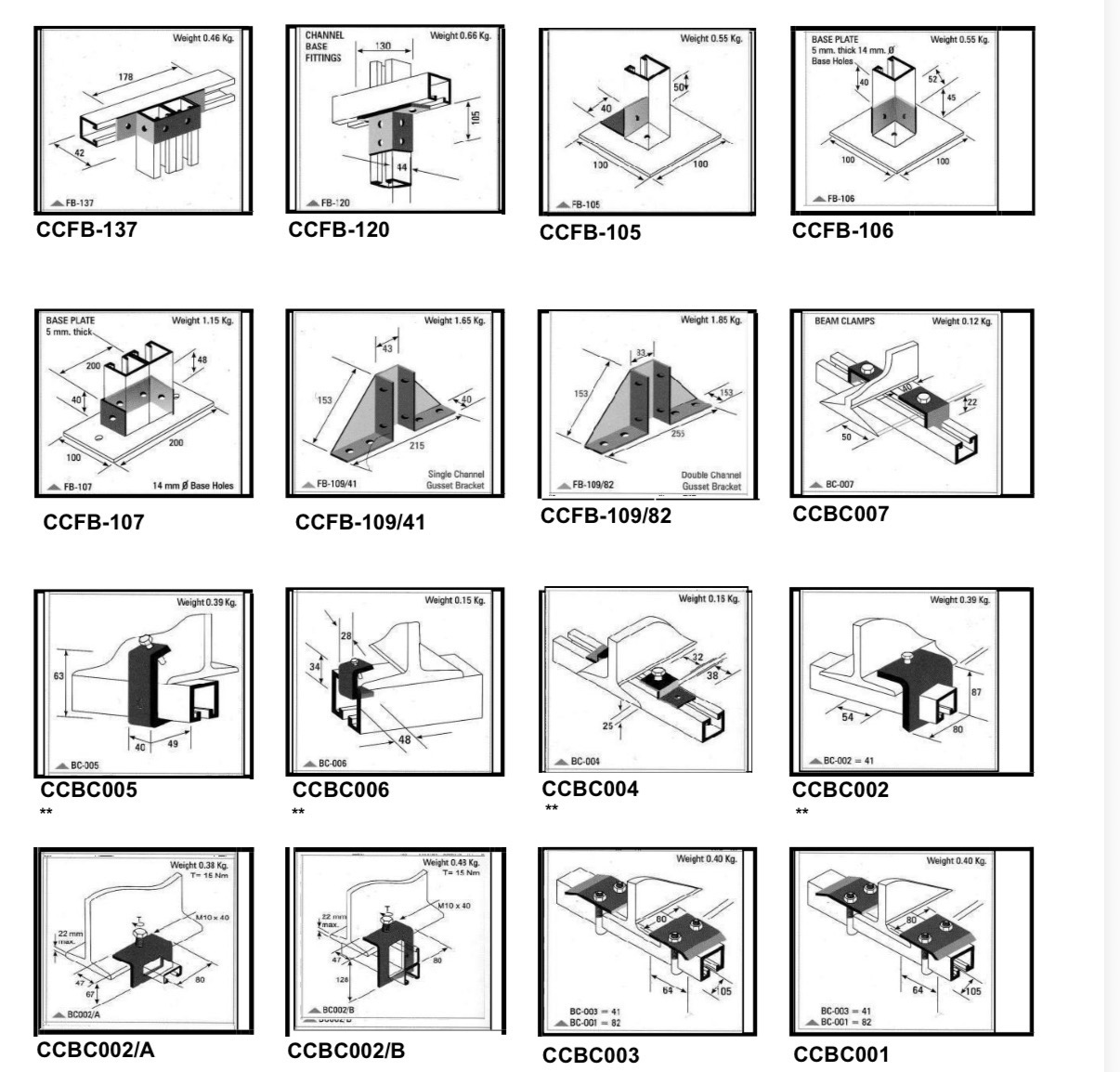

Technical Product Drawings

The drawings below provide a visual overview of the available product range. Scroll down to view the full product codes table, or select “View Full Size” for a detailed view of every dimension and specification.

All dimensions are in millimetres (mm).

Product Codes

Support Brackets

External Plate (Galv. & BZP)
Available in 6, 8, 10 & 12mm — Hole Clearance 3mm & 5mm thickness
External Plate (HDG)
M6 / M8 / M10 — 6, 8, 10 & 12mm; 3mm & 5mm thickness
Support Bracket
86 × 102mm
Support Bracket
57 × 90mm
Support Bracket
138 × 41 × 41mm
Channel Base Fitting
96 × 40mm

Channel Brackets

Channel Bracket
84mm × 40mm
Channel Bracket
126mm × 40mm
Channel Bracket
168mm × 40mm
Channel Bracket
210mm × 40mm
Channel Plate Fitting
86 × 86 × 41mm
Channel Support Bracket
138 × 89mm
Channel Cross Bracket
123 × 123mm
Cross Support Bracket
90 × 90 × 89mm (41 Channel)
Support Bracket
90 × 89 × 41mm
Channel Support Fitting (U & Z)
136 × 21mm
Channel Support Fitting (U & Z)
136 × 41mm
Channel Support Fitting (U & Z)
136 × 83mm
Channel Base Fitting
178 × 42mm
Channel Base Fitting
130 × 105 × 44mm

Right Angle Fittings

Right Angle Fitting
50 × 40 × 48mm
Right Angle Fitting
42 × 57
Right Angle Support Fitting
50 × 96mm
Right Angle Support Bracket
55 × 132mm
Angled Support Bracket
44° × 132mm
Right Angle Support Bracket
90 × 106 × 40mm
Right Angle Support Bracket
90 × 57 × 40mm
Right Angle Support Bracket
63 × 105mm
Obtuse Angle Bracket
45°
Obtuse Angle Bracket
15°
Obtuse Angle Bracket
22° (Specify Angle Required)
Acute Angle Bracket
45°
U & Z Fitting
90 × 40 × 21mm
U & Z Fitting
90 × 41mm
U & Z Fitting
90 × 48 × 40mm

Base Plates

Base Plate
100 × 100mm — 50mm upstand
Base Plate
100 × 100mm — 5mm thick, 14mm Ø Base Holes
Base Plate
200 × 100mm — 5mm thick, 14mm Ø Base Holes

Beam Clamps

Beam Clamp
50 × 22mm
Single Channel Gusset Bracket
153 × 215 × 43mm
Double Channel Gusset Bracket
153 × 253 × 33mm
Top Flange Beam Clamp
40 × 49 × 63mm
Top Flange Beam Clamp
28 × 34 × 48mm
Top Flange Beam Clamp
25 × 32 × 38mm
Top Flange Beam Clamp
54 × 80 × 87mm (41 Channel)
Top Flange Beam Clamp
M10 × 40, T=15 Nm — 22mm max, 47 × 67 × 80mm
Top Flange Beam Clamp
M10 × 40, T=15 Nm — 22mm max, 47 × 80 × 126mm
Top Flange Beam Clamp
41 / 82 Channel — 64 × 80mm
Top Flange Beam Clamp
41 / 82 Channel — 64 × 80 × 105mm

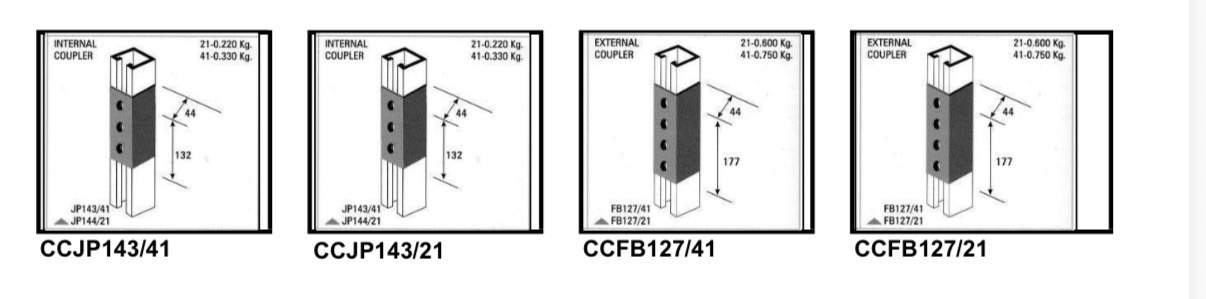

Couplers

Internal Coupler
41 Channel — 0.330 Kg
Internal Coupler
21 Channel — 0.220 Kg (JP144/21)
External Coupler
41 Channel — 0.750 Kg
External Coupler
21 Channel — 0.600 Kg

Product	Size / Option	Product Code
Support Brackets
External Plate (Galv. & BZP)	Available in 6, 8, 10 & 12mm — Hole Clearance 3mm & 5mm thickness
External Plate (HDG)	M6 / M8 / M10 — 6, 8, 10 & 12mm; 3mm & 5mm thickness
Support Bracket	86 × 102mm
Support Bracket	57 × 90mm
Support Bracket	138 × 41 × 41mm
Channel Base Fitting	96 × 40mm
Channel Brackets
Channel Bracket	84mm × 40mm
Channel Bracket	126mm × 40mm
Channel Bracket	168mm × 40mm
Channel Bracket	210mm × 40mm
Channel Plate Fitting	86 × 86 × 41mm
Channel Support Bracket	138 × 89mm
Channel Cross Bracket	123 × 123mm
Cross Support Bracket	90 × 90 × 89mm (41 Channel)
Support Bracket	90 × 89 × 41mm
Channel Support Fitting (U & Z)	136 × 21mm
Channel Support Fitting (U & Z)	136 × 41mm
Channel Support Fitting (U & Z)	136 × 83mm
Channel Base Fitting	178 × 42mm
Channel Base Fitting	130 × 105 × 44mm
Right Angle Fittings
Right Angle Fitting	50 × 40 × 48mm
Right Angle Fitting	42 × 57
Right Angle Support Fitting	50 × 96mm
Right Angle Support Bracket	55 × 132mm
Angled Support Bracket	44° × 132mm
Right Angle Support Bracket	90 × 106 × 40mm
Right Angle Support Bracket	90 × 57 × 40mm
Right Angle Support Bracket	63 × 105mm
Obtuse Angle Bracket	45°
Obtuse Angle Bracket	15°
Obtuse Angle Bracket	22° (Specify Angle Required)
Acute Angle Bracket	45°
U & Z Fitting	90 × 40 × 21mm
U & Z Fitting	90 × 41mm
U & Z Fitting	90 × 48 × 40mm
Base Plates
Base Plate	100 × 100mm — 50mm upstand
Base Plate	100 × 100mm — 5mm thick, 14mm Ø Base Holes
Base Plate	200 × 100mm — 5mm thick, 14mm Ø Base Holes
Beam Clamps
Beam Clamp	50 × 22mm
Single Channel Gusset Bracket	153 × 215 × 43mm
Double Channel Gusset Bracket	153 × 253 × 33mm
Top Flange Beam Clamp	40 × 49 × 63mm
Top Flange Beam Clamp	28 × 34 × 48mm
Top Flange Beam Clamp	25 × 32 × 38mm
Top Flange Beam Clamp	54 × 80 × 87mm (41 Channel)
Top Flange Beam Clamp	M10 × 40, T=15 Nm — 22mm max, 47 × 67 × 80mm
Top Flange Beam Clamp	M10 × 40, T=15 Nm — 22mm max, 47 × 80 × 126mm
Top Flange Beam Clamp	41 / 82 Channel — 64 × 80mm
Top Flange Beam Clamp	41 / 82 Channel — 64 × 80 × 105mm
Couplers
Internal Coupler	41 Channel — 0.330 Kg
Internal Coupler	21 Channel — 0.220 Kg (JP144/21)
External Coupler	41 Channel — 0.750 Kg
External Coupler	21 Channel — 0.600 Kg

Enquire — Brackets & Fixings

Need pricing or stock on brackets, cleats and fixings?

Quote the bracket or fixing codes from the table above — we'll confirm gauge, finish, hole centres and project quantities from the Cumbernauld depot.
