BASKET TRAY
Our Basket Tray range provides a lightweight, high-strength wire mesh cable management system designed for fast installation, maximum cable ventilation and flexible routing. Available in multiple widths and depths, the range offers an efficient containment solution for commercial and industrial electrical installations.
Reference

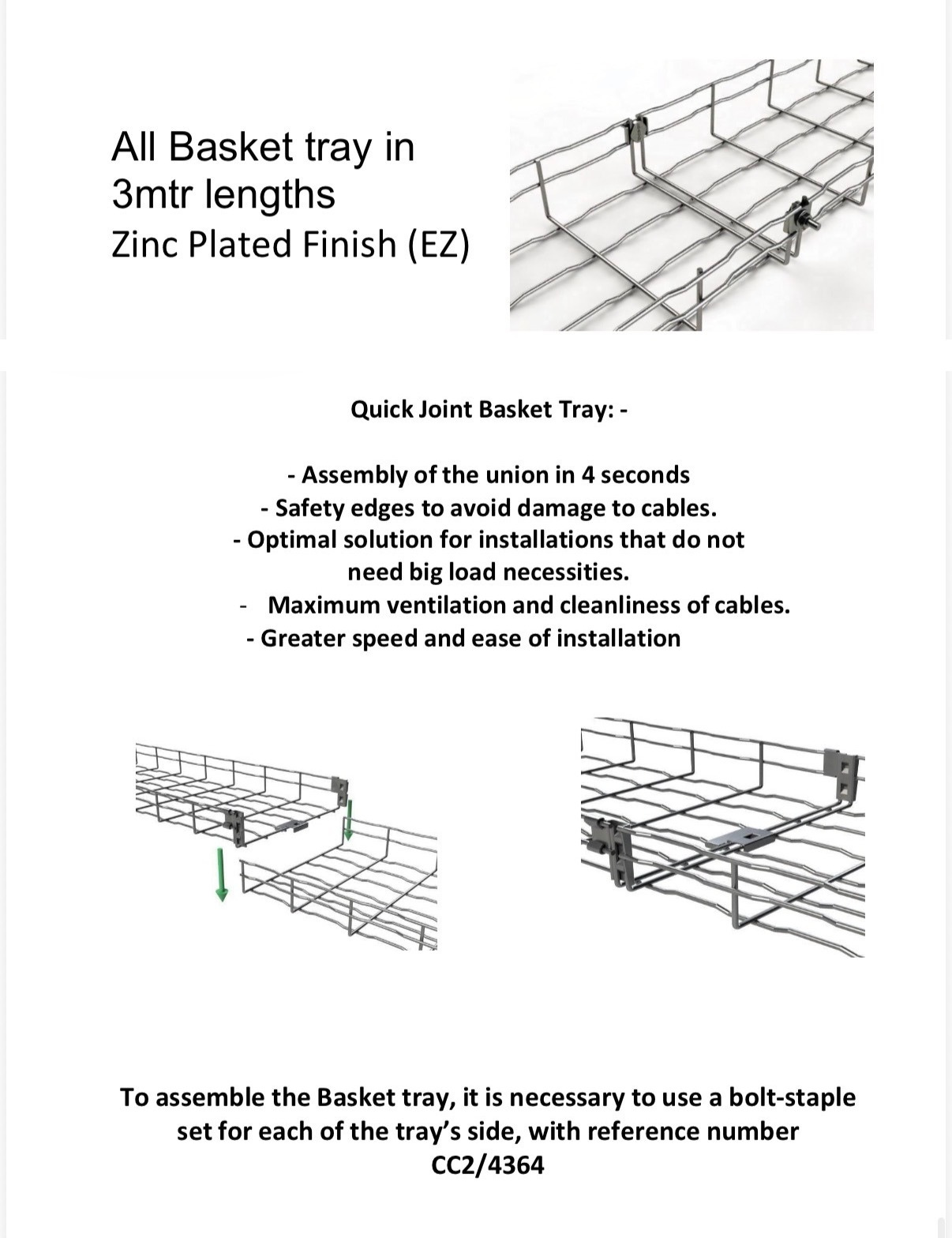

Technical Product Drawings
The drawings below provide a visual overview of the available product range. Scroll down to view the full product codes table, or select “View Full Size” for a detailed view of every dimension and specification.
All Basket Tray in 3m lengths · Zinc Plated Finish (EZ) · Quick Joint Assembly
Product Codes
3m × 35mm Wire Cable Tray — Zinc Plated (EZ)
Wire Cable Tray
100mm × 35mm Wide × 3m
Wire Cable Tray
150mm × 35mm Wide × 3m
Wire Cable Tray
200mm × 35mm Wide × 3m
Wire Cable Tray
300mm × 35mm Wide × 3m
3m × 65mm Wire Cable Tray — Zinc Plated (EZ)
Wire Cable Tray
60mm × 65mm Wide × 3m
Wire Cable Tray
100mm × 65mm Wide × 3m
Wire Cable Tray
150mm × 65mm Wide × 3m
Wire Cable Tray
200mm × 65mm Wide × 3m
Wire Cable Tray
300mm × 65mm Wide × 3m
Wire Cable Tray
400mm × 65mm Wide × 3m
Wire Cable Tray
500mm × 65mm Wide × 3m
Wire Cable Tray
600mm × 65mm Wide × 3m
Assembly Accessory
Bolt-Staple Set (per tray side)
Quick Joint Assembly
| Product | Size / Option | Product Code |
|---|---|---|
| 3m × 35mm Wire Cable Tray — Zinc Plated (EZ) | ||
| Wire Cable Tray | 100mm × 35mm Wide × 3m | |
| Wire Cable Tray | 150mm × 35mm Wide × 3m | |
| Wire Cable Tray | 200mm × 35mm Wide × 3m | |
| Wire Cable Tray | 300mm × 35mm Wide × 3m | |
| 3m × 65mm Wire Cable Tray — Zinc Plated (EZ) | ||
| Wire Cable Tray | 60mm × 65mm Wide × 3m | |
| Wire Cable Tray | 100mm × 65mm Wide × 3m | |
| Wire Cable Tray | 150mm × 65mm Wide × 3m | |
| Wire Cable Tray | 200mm × 65mm Wide × 3m | |
| Wire Cable Tray | 300mm × 65mm Wide × 3m | |
| Wire Cable Tray | 400mm × 65mm Wide × 3m | |
| Wire Cable Tray | 500mm × 65mm Wide × 3m | |
| Wire Cable Tray | 600mm × 65mm Wide × 3m | |
| Assembly Accessory | ||
| Bolt-Staple Set (per tray side) | Quick Joint Assembly | |
Enquire — Basket Tray
Need pricing or stock on wire mesh basket tray?
Quote the basket tray codes from the table above — we'll confirm depths, widths, finishes and project quantities from the Cumbernauld depot.
